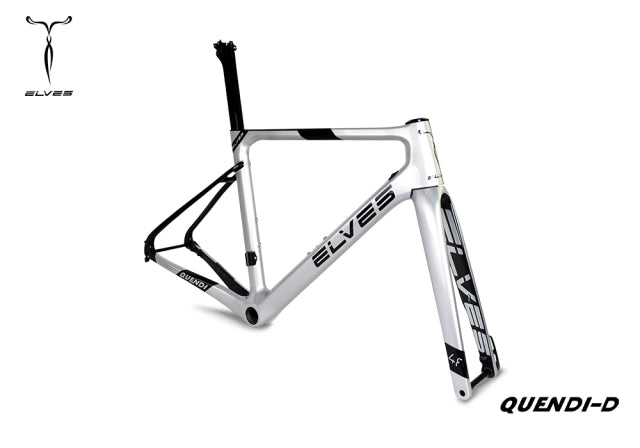

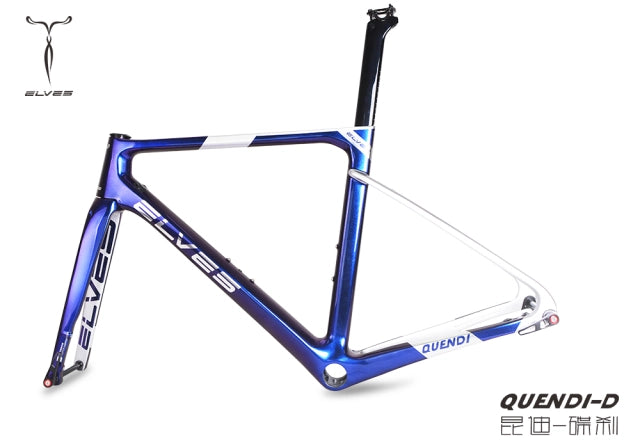

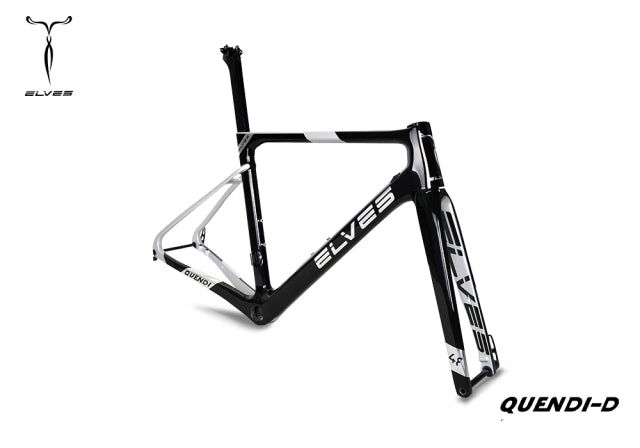

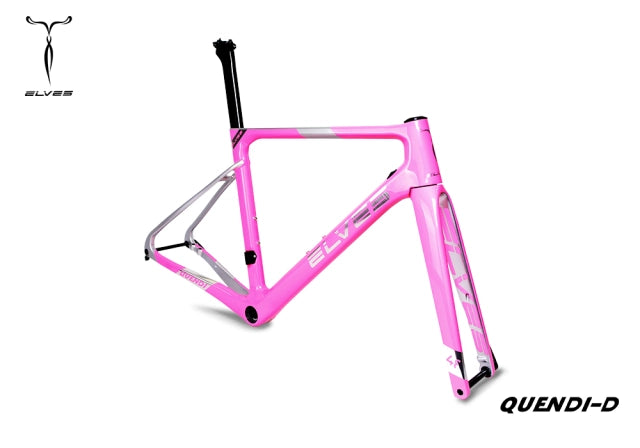

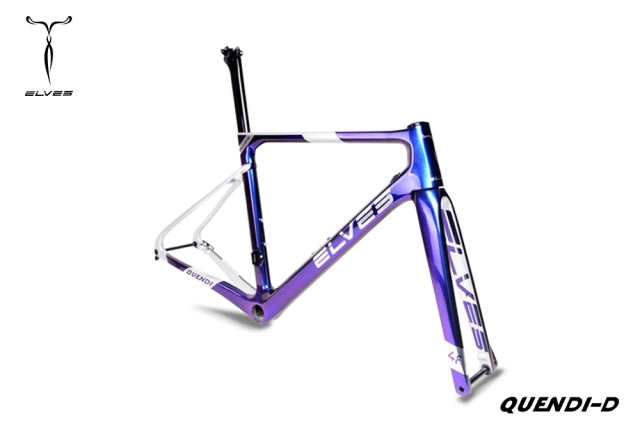

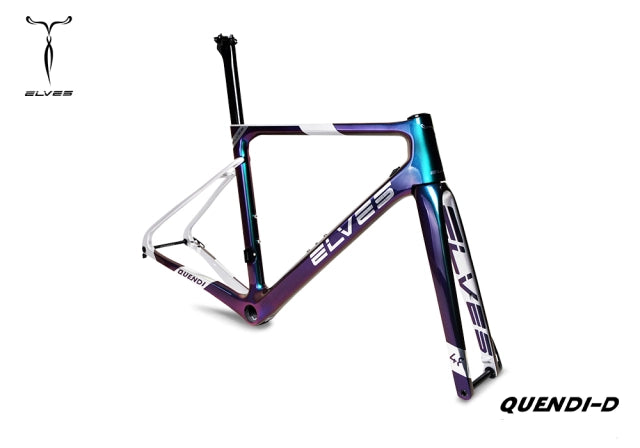

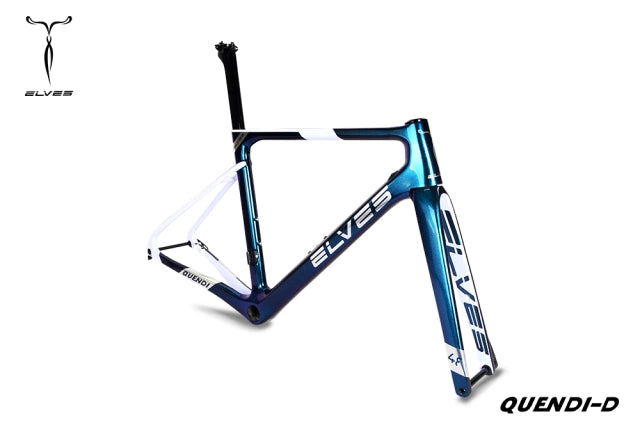

Elves Quendi Disc Road Frame

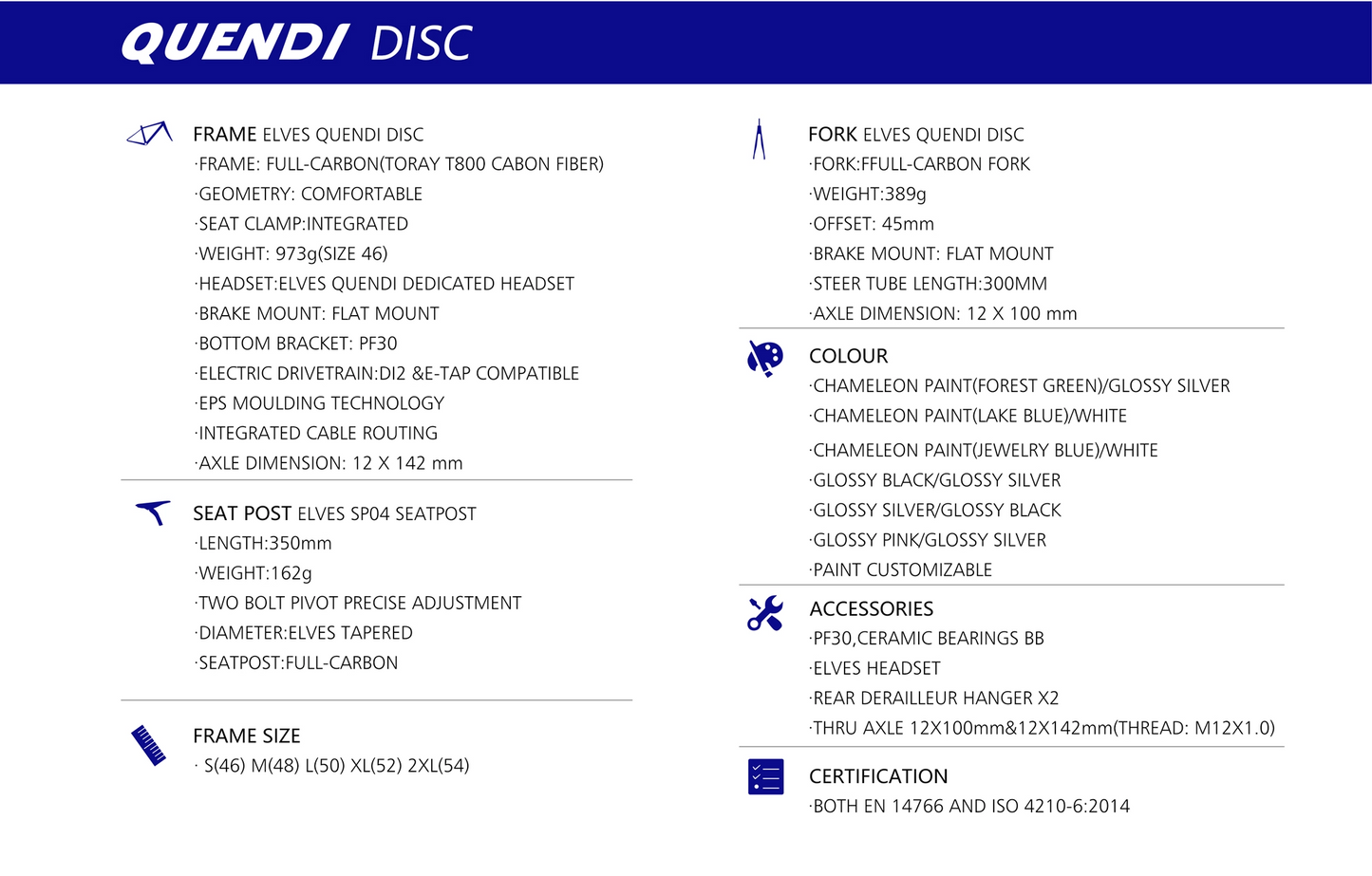

ELVES QUENDI DISC

FRAME:
FULL-CARBON (TORAY T800 CARBON FIBER)

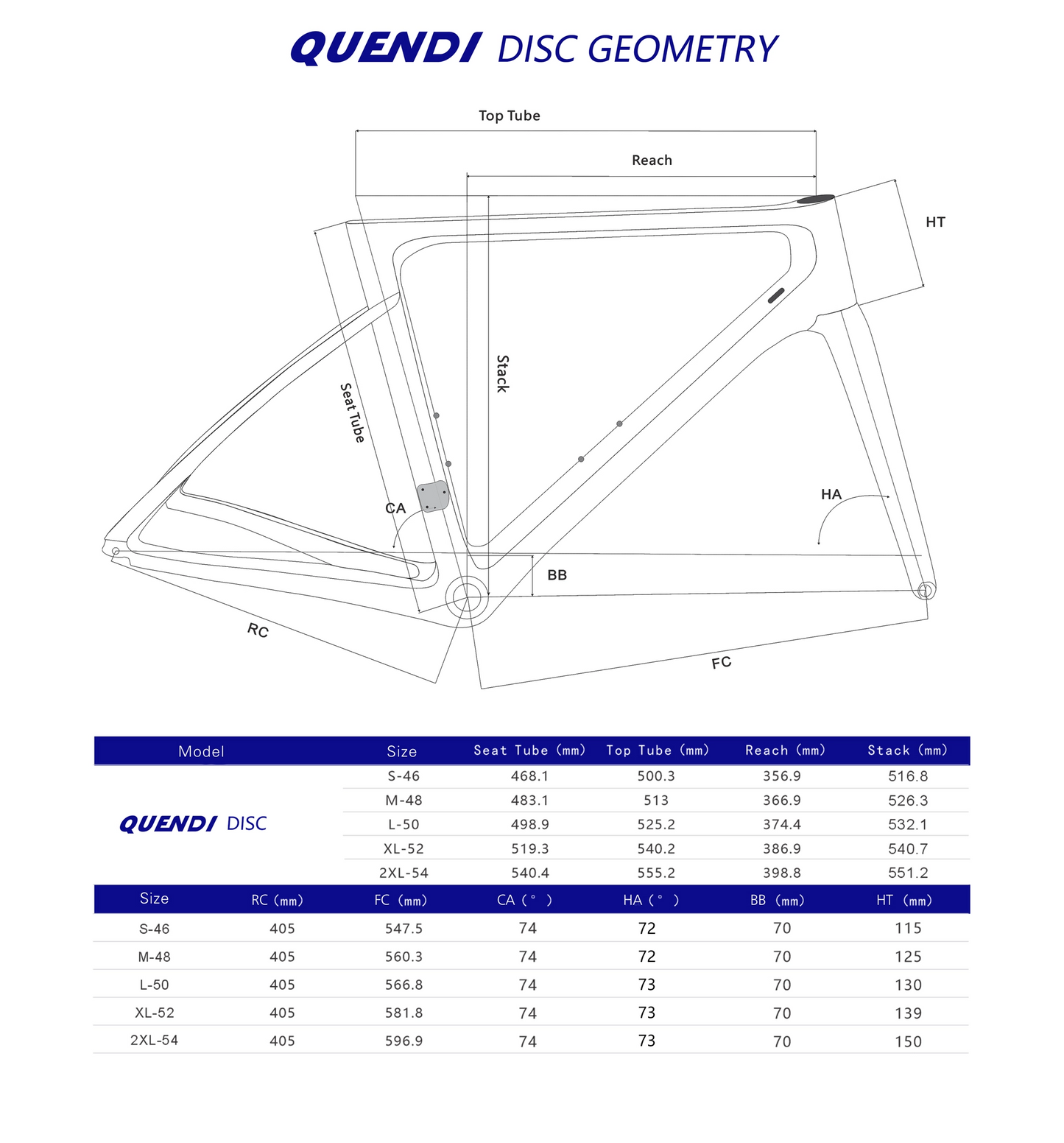

GEOMETRY: COMFORTABLE
SEAT CLAMP: INTEGRATED
WEIGHT: 973g (SIZE 46)

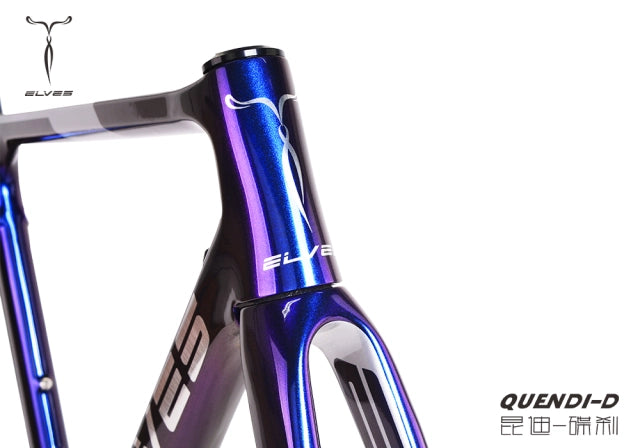

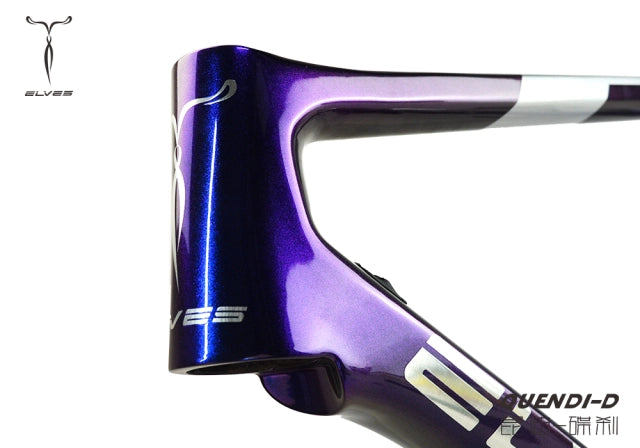

HEADSET: ELVES QUENDI DEDICATED HEADSET
BRAKE MOUNT: FLAT MOUNT
BOTTOM BRACKET: PF30
ELECTRIC DRIVETRAIN: DI2 & E-TAP COMPATIBLE
EPS MOULDING TECHNOLOGY
INTEGRATED CABLE ROUTING
AXLE DIMENSION: 12 X 142 mm

SEAT POST:
ELVES SP04 SEATPOST
LENGTH: 350mm
WEIGHT: 162g
TWO BOLT PIVOT PRECISE ADJUSTMENT
DIAMETER: ELVES TAPERED
SEATPOST: FULL-CARBON

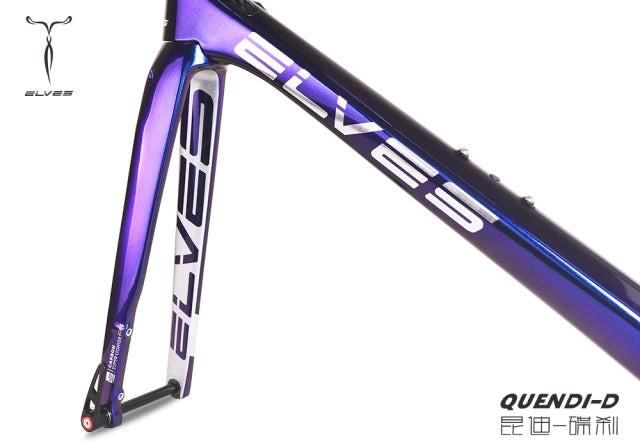

FORK:
ELVES QUENDI DISC
FORK: FULL-CARBON FORK
WEIGHT: 389g
OFFSET: 45mm
BRAKE MOUNT: FLAT MOUNT
STEER TUBE LENGTH: 300MM
AXLE DIMENSION: 12 X 100 mm

ACCESSORIES:
PF30, CERAMIC BEARINGS BB
ELVES HEADSET
REAR DERAILLEUR HANGER X2
THRU AXLE 12X100mm & 12X142mm (THREAD: M12X1.0)
