Elves Vanyar Disc Frame 2022

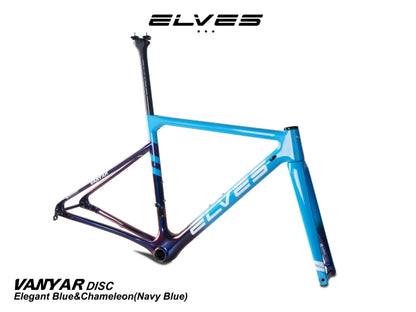

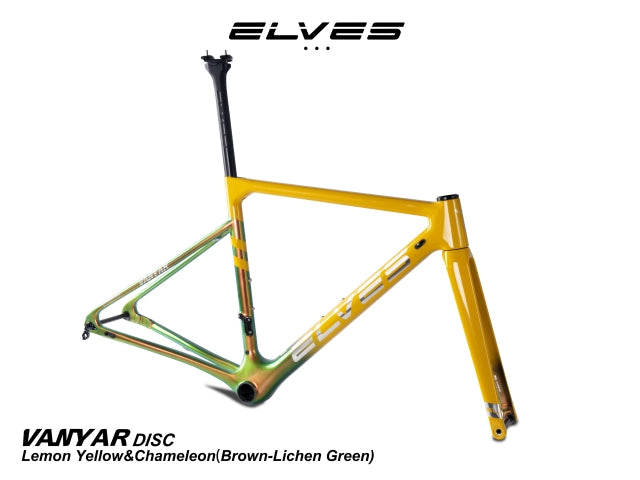

VANYAR DISC 2022

FRAME
Frame: Full-carbon (Toray T800 & T1000 carbon fiber)
Geometry: Pro
Seat Clamp: Integrated
Weight: 850g (size 46, without metal parts)
Headset: 1-1/2" lower, 1-1/8" upper
Brake Mount: Flat mount
Bottom Bracket: Press fit BB86
Electric Drivetrain: Di2 & e-TAP compatible
OPM (One Piece Moulding) Technology
Integrated Cable Routing
Axle Dimension: 12x142mm

SEATPOST
Length: 350 mm
Weight: 165 g
Two Bolt Pivot Precise Adjustment
Diameter: 27.2 mm
Offset: 0 mm and 25 mm seatpost available
Seatpost: Full-carbon

FORK
Fork: Full-carbon fork
Weight: 400 g
Offset: 45 mm
Brake Mount: Flat mount
Steer Tube Length: 300 mm
Axle Dimension: 12x100 mm

ACCESSORIES
BB86, Ceramic Bearings BB
Elves Headset
Rear Derailleur Hanger x2
Thru Axle 12x100mm & 12x142mm (Thread: M12x1.5)
