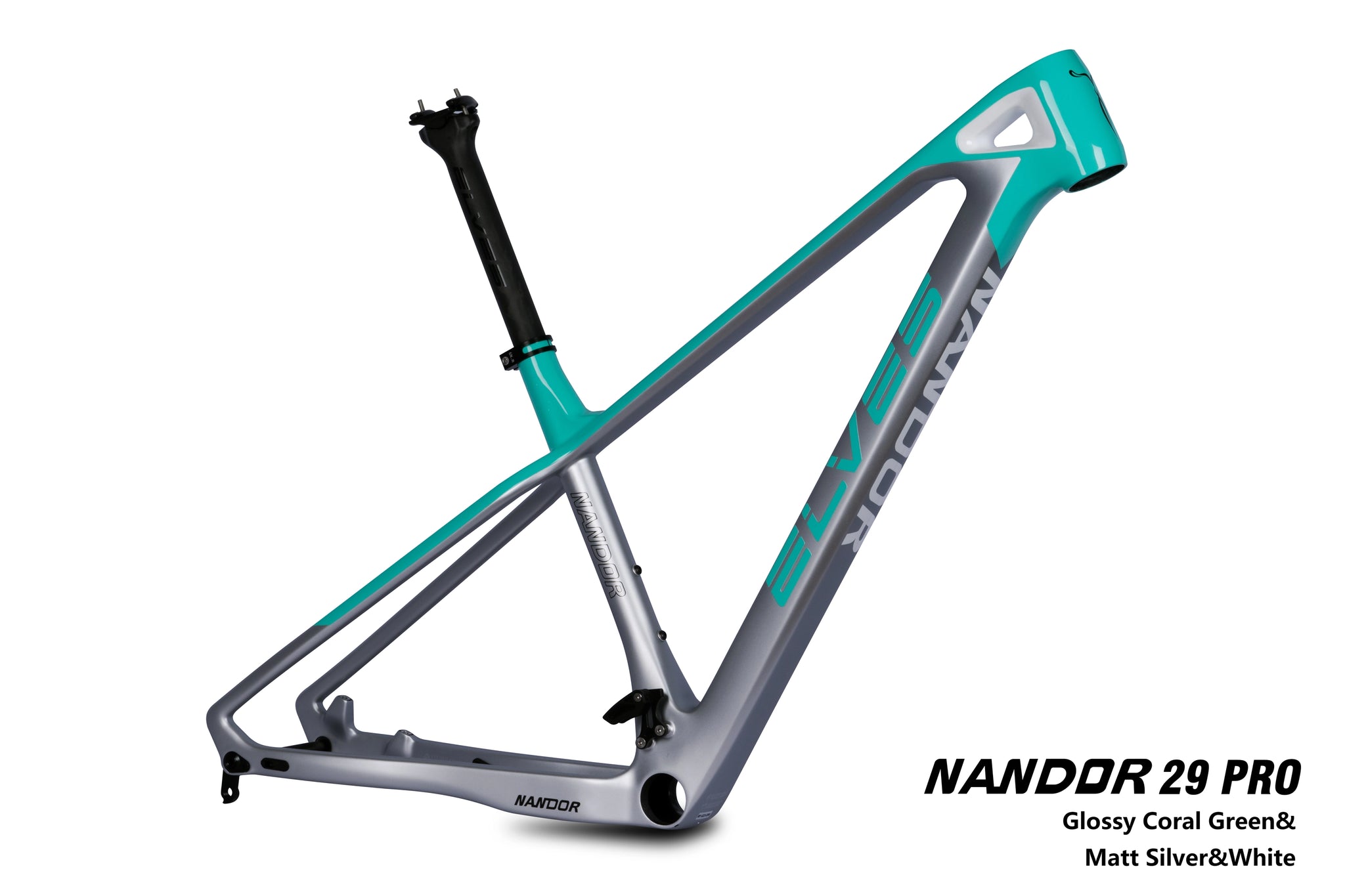

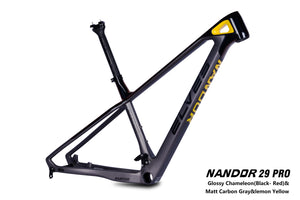

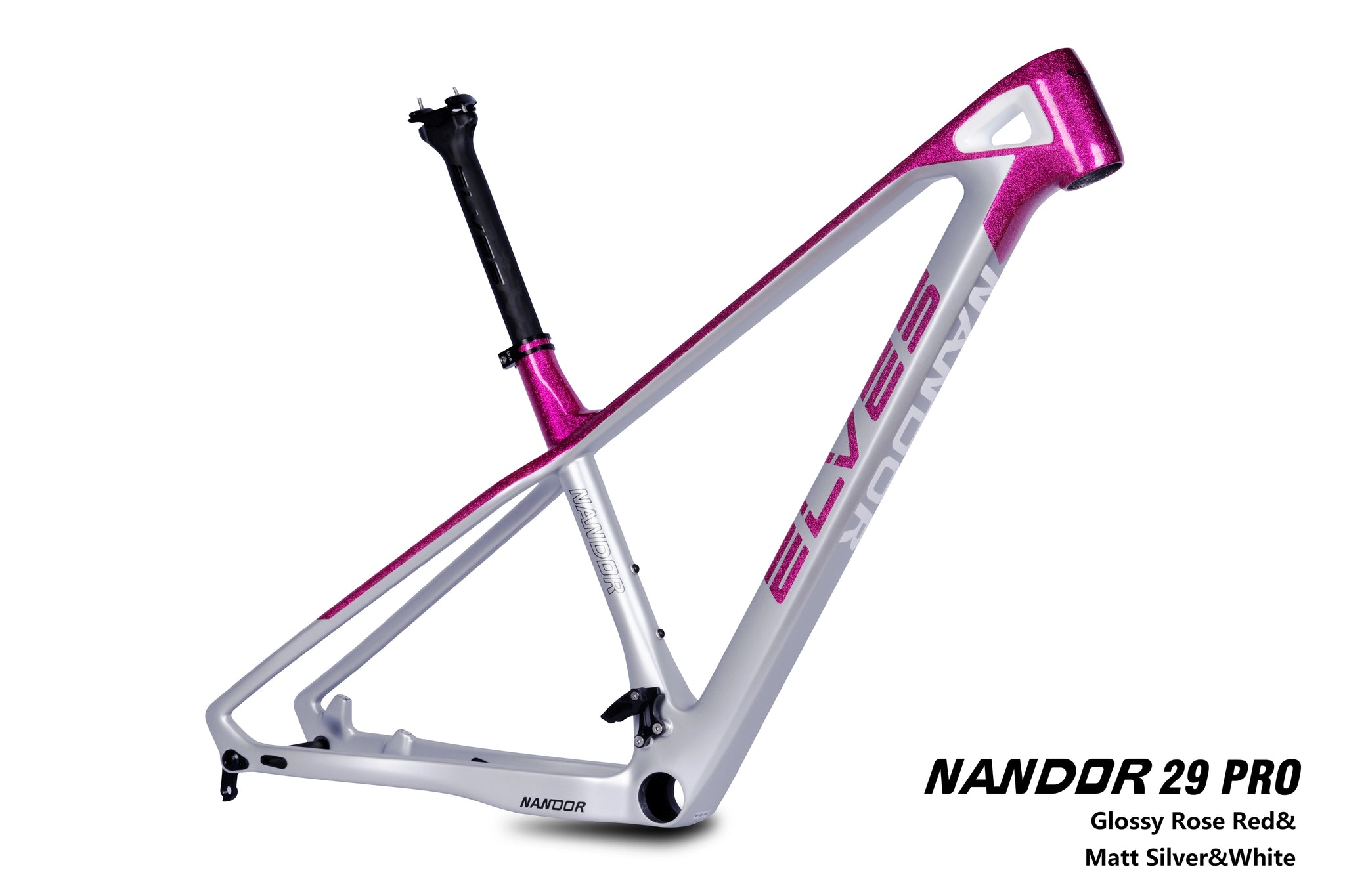

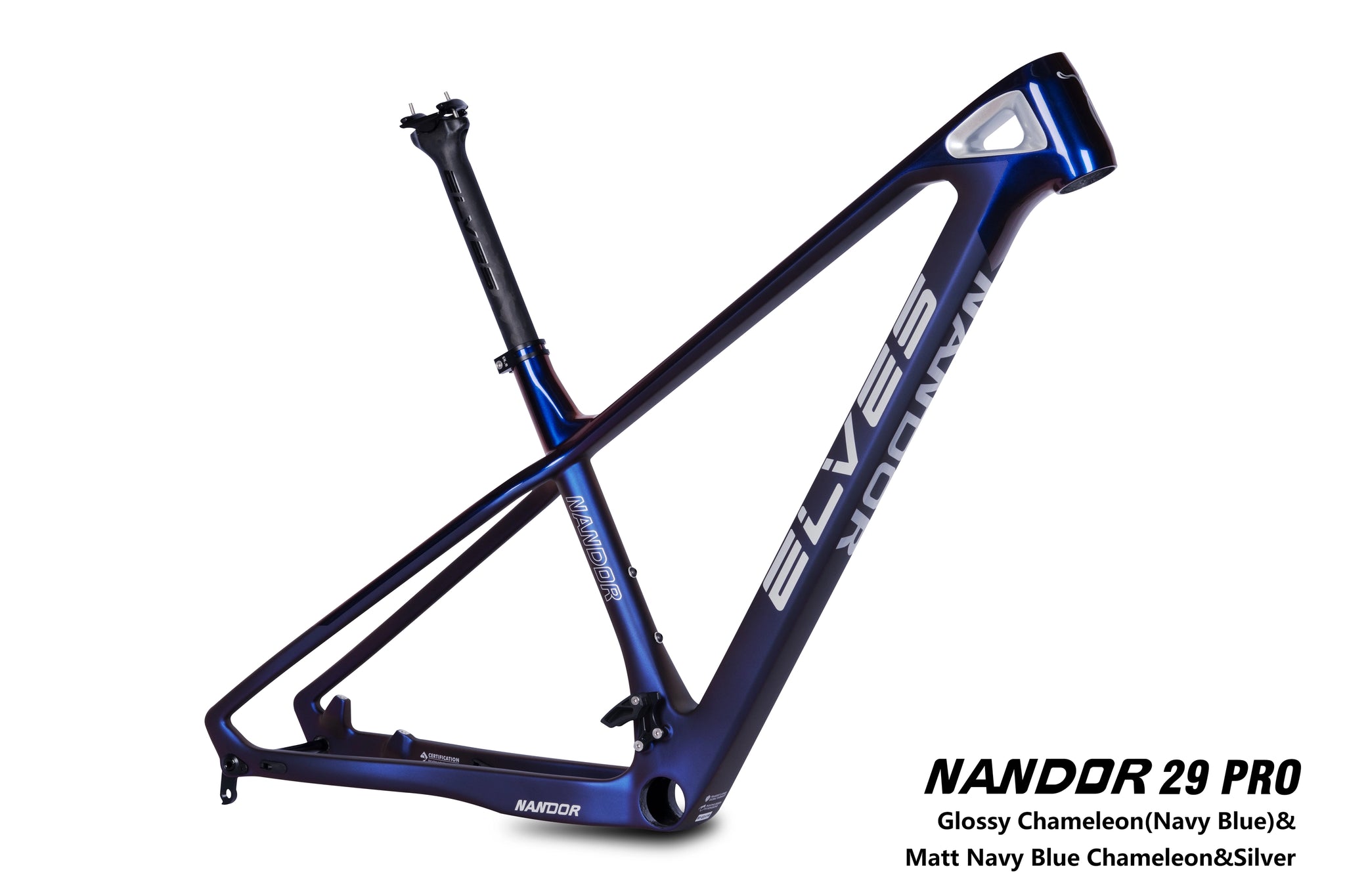

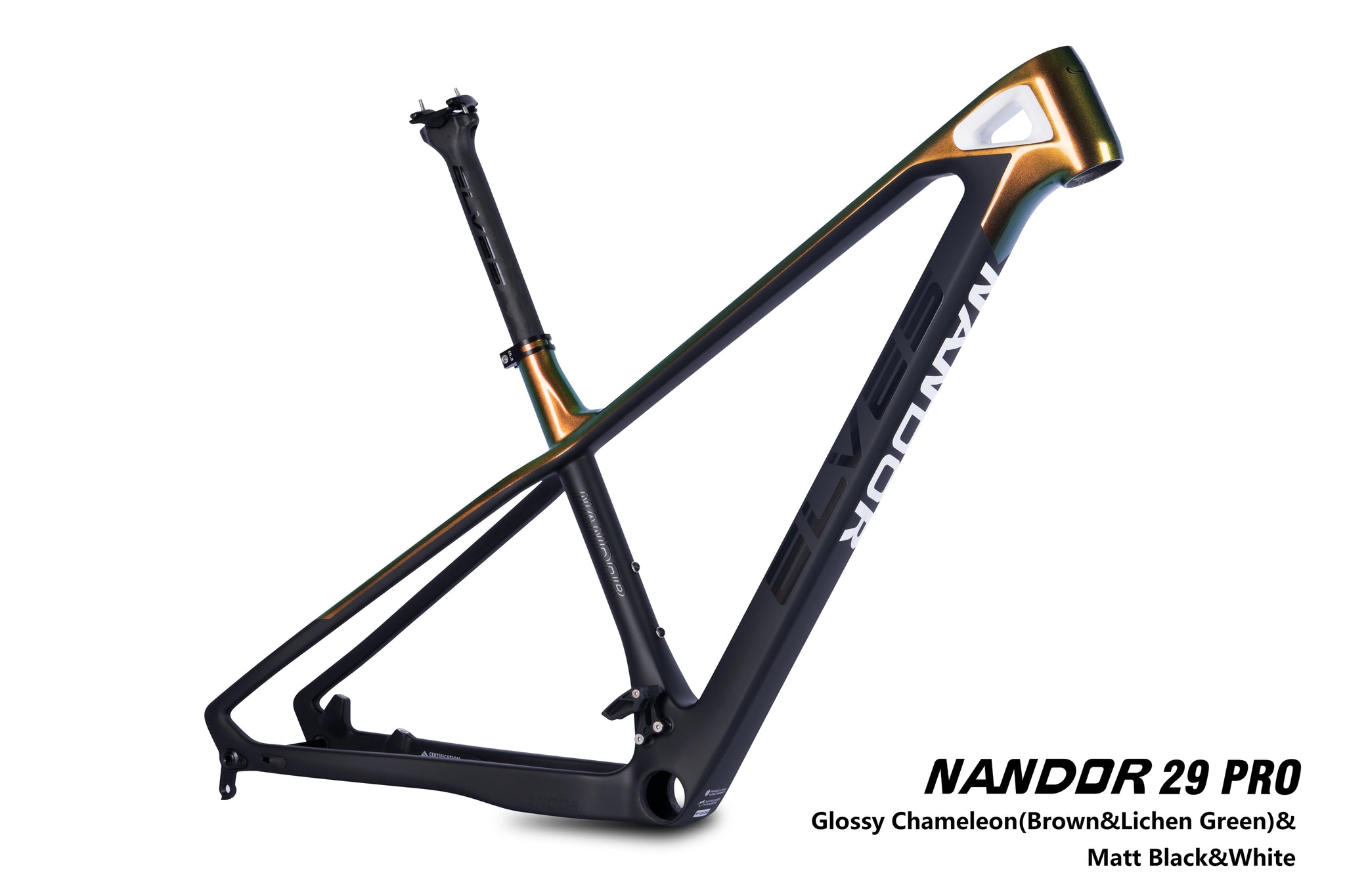

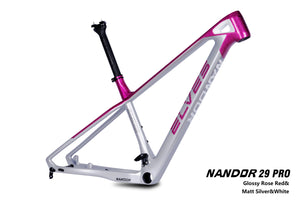

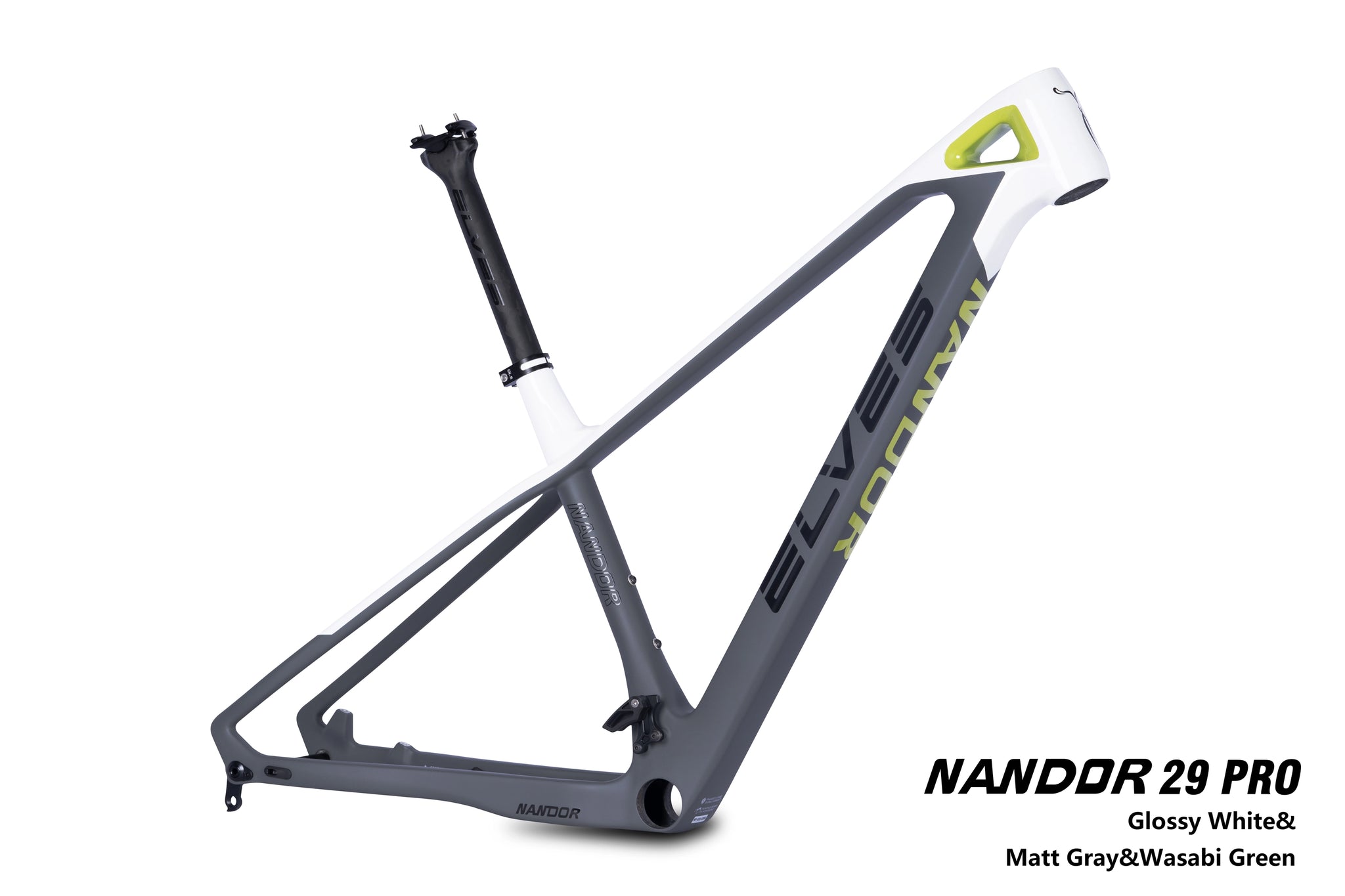

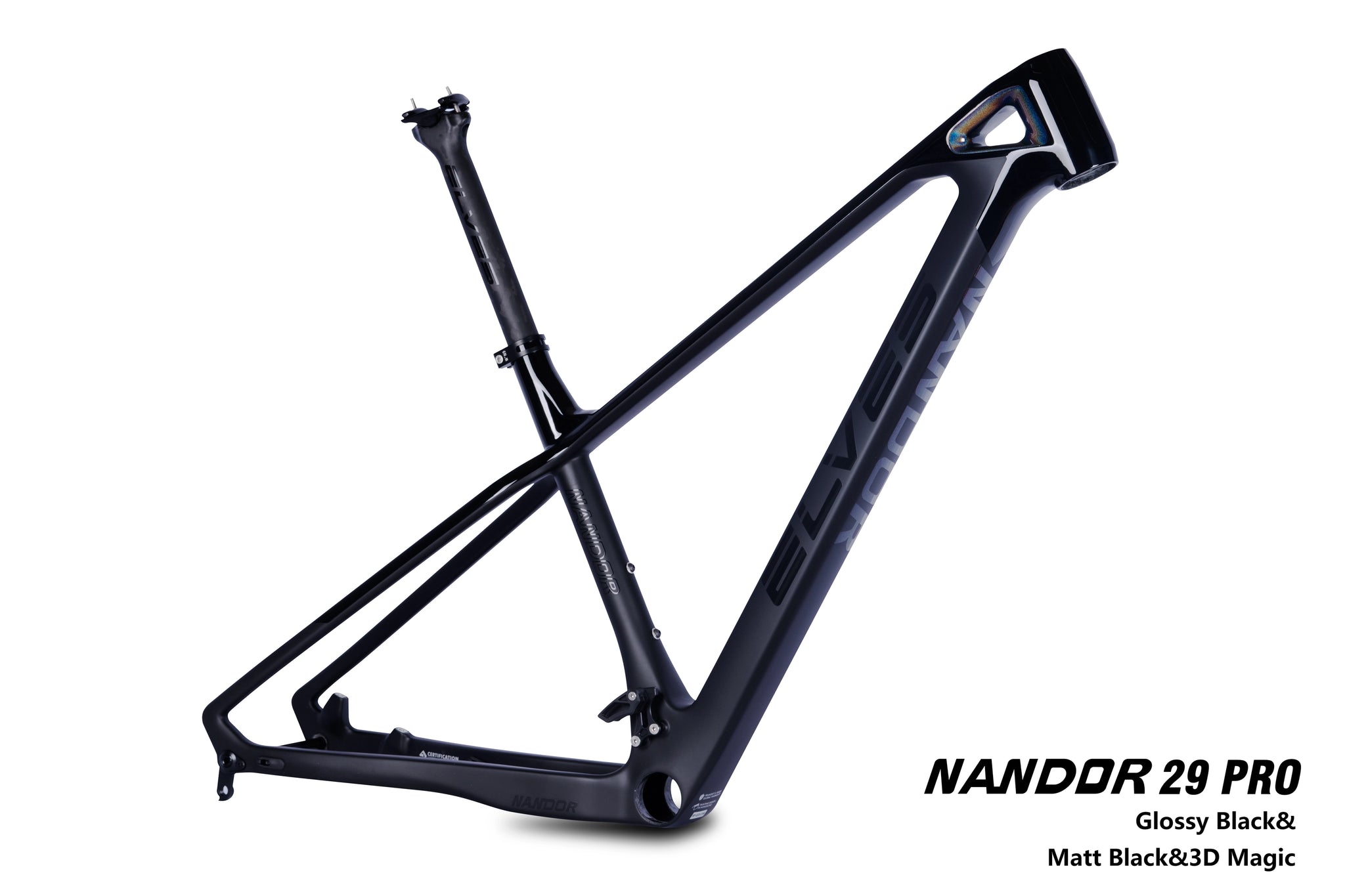

Elves Nandor 29 Pro Hardtail MTB Frame

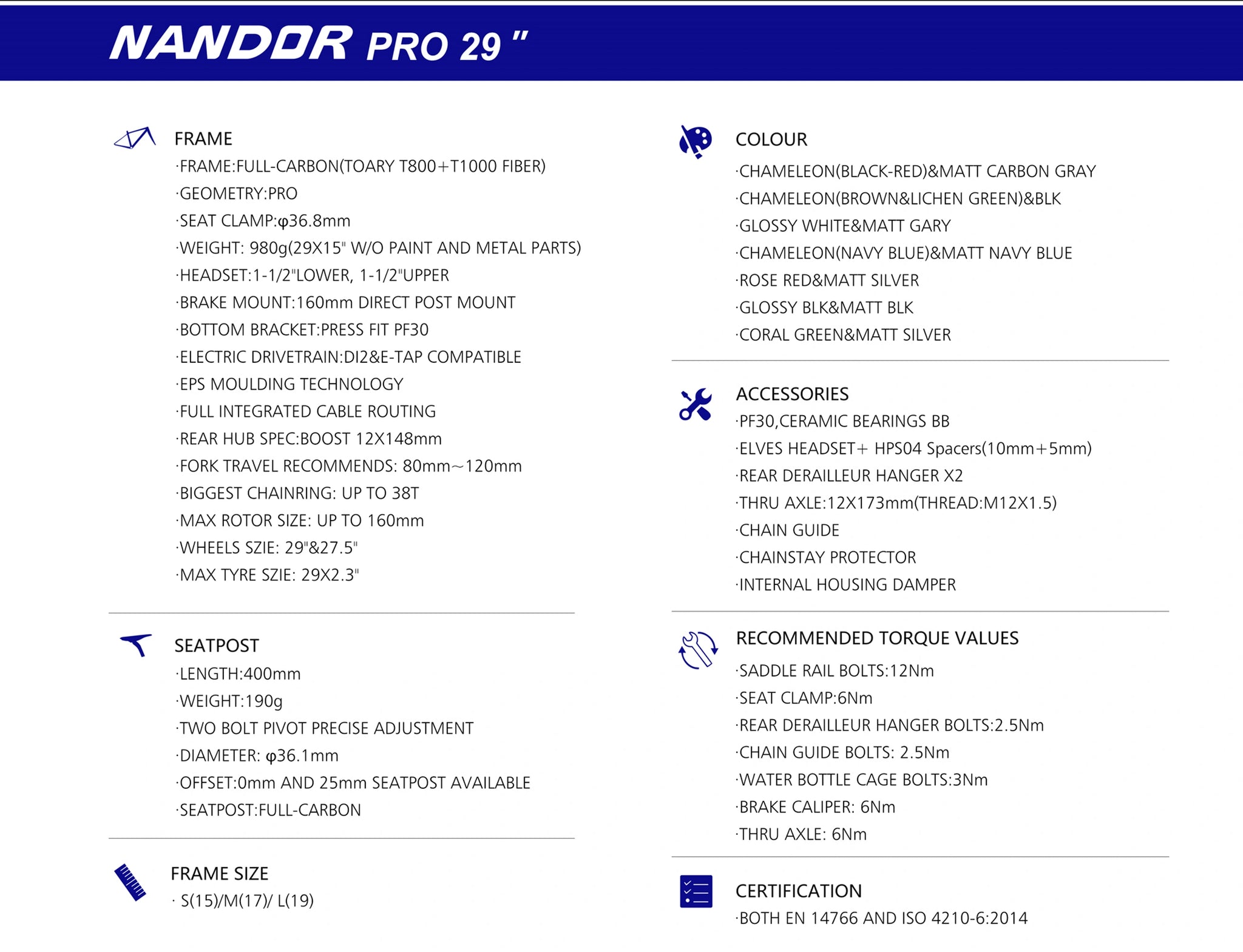

FRAME
ELVES NANDOR Pro 29" XC FRAME
FULL-CARBON(TOARY T800+T1000 FIBER)

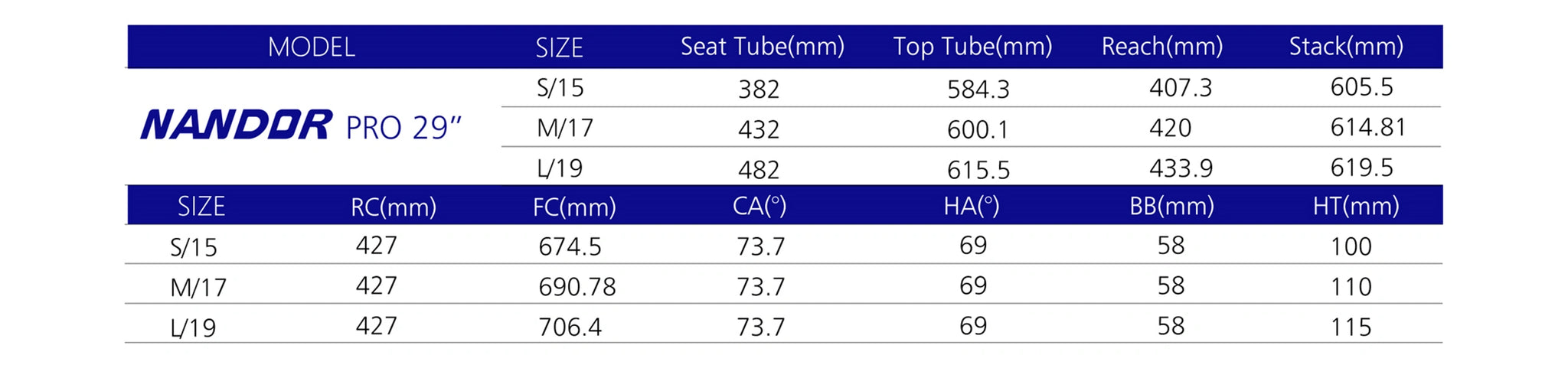

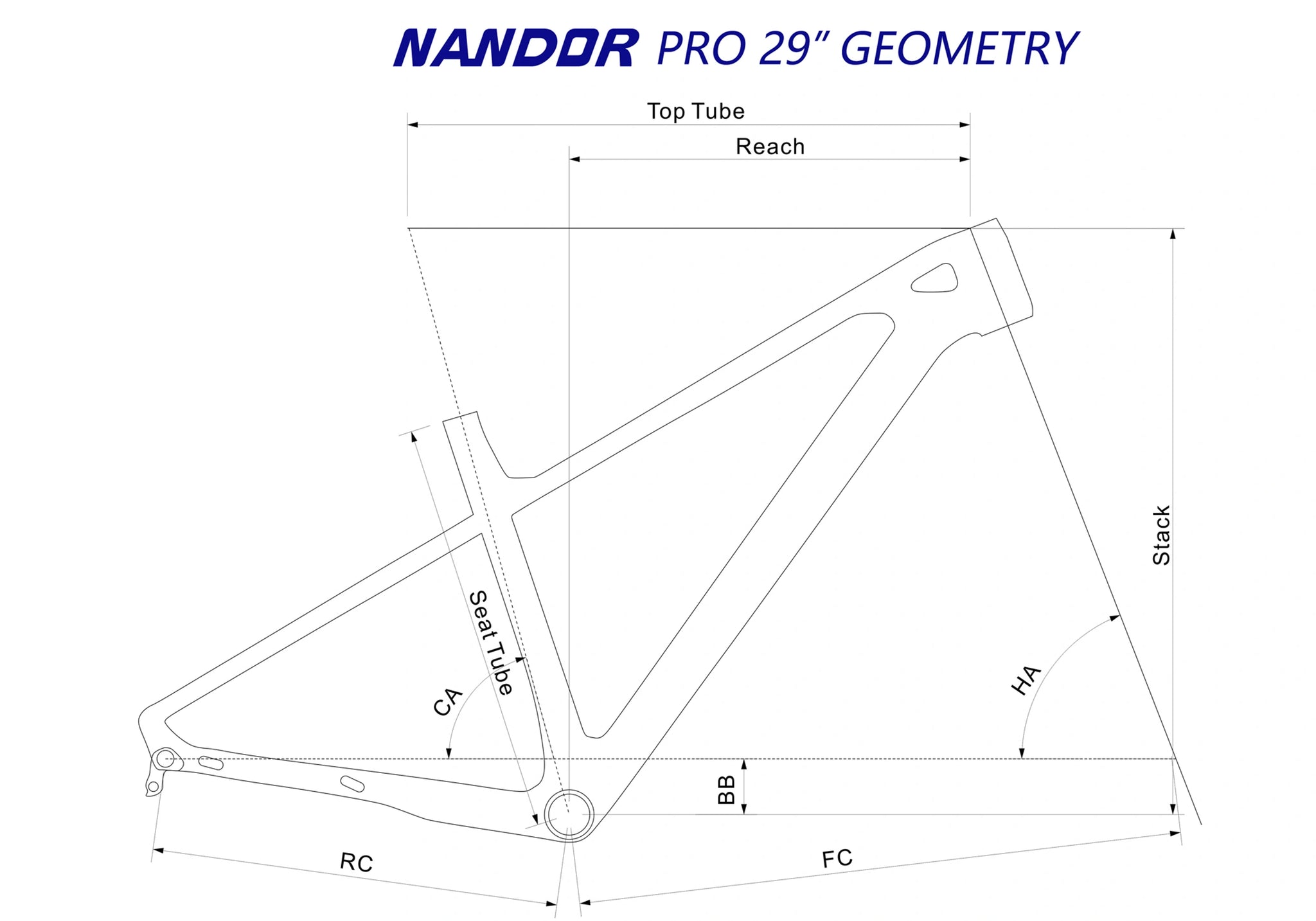

GEOMETRY: PRO
SEAT CLAMP：φ36.8MM
WEIGHT:  900g(29X15" W/T Paint and Metal Parts)
HEADSET: 1-1/2"LOWER, 1-1/2"UPPER
BRAKE MOUNT: 160mm DIRECT POST MOUNT
BOTTOM BRACKET：PRESS FIT PF30
ELECTRIC DRIVETRAIN: Di2&E-TAP COMPATIBLE
EPS MOLDING TECHNOLOGY
FULL INTEGRATED CABLE ROUTING
REAR HUB SPEC: BOOST 12X148MM
FORK TRAVEL RECOMMENDS: 80MM~120MM
BIGGEST CHAINRING: UP TO 38T
MAX ROTOR SIZE: UP TO 160MM
WHEELS SIZE: 29"&27.5"
MAX TIRE SIZE: 29X2.3"

SEAT POST
ELVES NANDOR PRO SEATPOST
SEAT CLAMP：φ36.8mm
LENGTH:400mm
WEIGHT:165g
TWO BOLT PIVOT PRECISE ADJUSTMENT
DIAMETER:31.6mm
OFFSET:0mm
SEATPOST:FULL-CARBON

ACCESSORIES
PRESS FIT PF30(CERAMIC BEARINGS)
ELVES HEADSET+ HANDLEBAR SPACERS(10mm+5mm)
REAR DERAILLEUR HANGER X2
THRU AXLE:12X173mm(THREAD:M12X1.5)
CHAIN GUIDE
CHAINSTAY PROTECTOR
INTERNAL HOUSING DAMPER

TORQUE VALUES
SADDLE RAIL BOLTS:12Nm
SEAT CLAMP:6Nm
REAR DERAILLEUR HANGER BOLTS:2.5Nm
CHAIN GUIDE BOLTS: 2.5Nm
WATER BOTTLE CAGE BOLTS:3Nm
BRAKE CALIPER: 6Nm
THRU AXLE: 6Nm
